|Boyut:||AAA||Seri:||Şarj Edilemez hücre|
|kimya:||Tek Kullanımlık Li-MnO₂ Pil||Kapasite:||1500mAh|
|parça numarası:||CR14505||Logo:||Özelleştirilmiş hoş geldiniz|

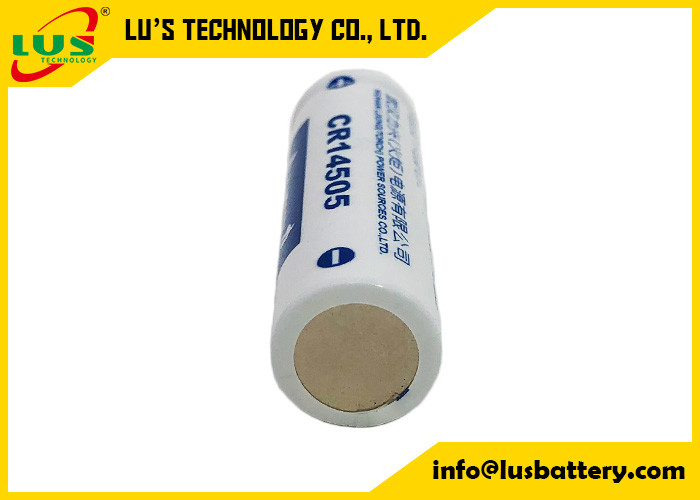

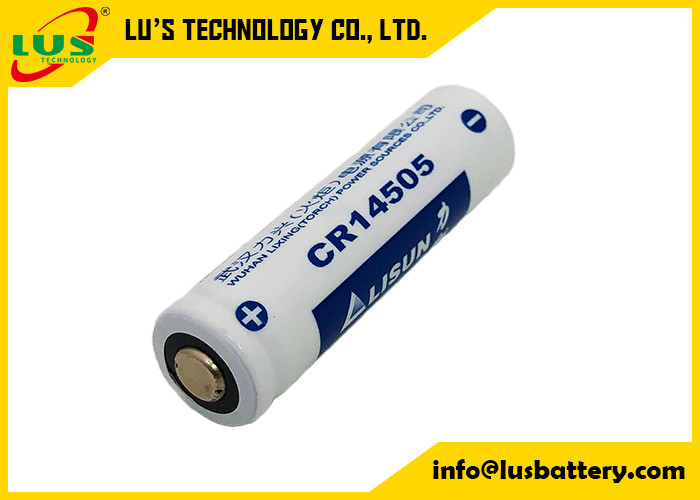

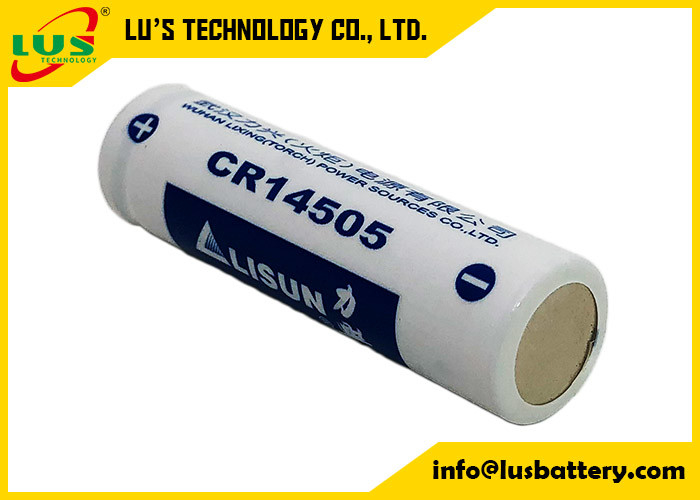

CR14505 AA Lithium Manganese Dioxide Battery,
Cylindrical Lithium Manganese Dioxide Battery,
Spiral CR14505 Lithium Battery
CR14505 AA Lithium Manganese Dioxide Battery Cylindrical 3.0 V 1500mAh
CR14505 Lithium Battery AA Lithium Manganese Dioxide Battery Spiral Cylindrical battery 3.0 V 1500mAh CR14505
CR AA CRAA 3V Lithium Cell (CR14505)
Type: Lithium Manganese Dioxide (LiMnO2). Voltage: 3 V.
Length: 50.5 mm. Diameter: 14.5 mm.
Termination: tin plated nickel wire, 0.8 mm diameter, 45 mm in length or customized
Replaces: CRAA, CR AA, CR AA, CR AA, CR-AA, CR14505, CR14505SE, CR14505BL, Varta 6117, ECRAA, BRAA, BR AA, BR AA, BR AA, BR-AA, BR14505.
This CRAA, or CR14505 3V Lithium battery replaces Sanyo Lazer Lithium CR14505SE, Varta 6117, CRAA batteries and many others.
Battery Size: AA
Battery Capacity (mAh): 1500
Battery Chemistry: Lithium
Battery Terminal Type: Button Top
Nominal Voltage: 3.0V
Nominal Capacity: 1500mAH
CR14505 lithium battery Technical data
Lithium Primary Batteries Li mno2 3V Key Features
1. High Energy Density
It is about 3 to 10 times more energy density than any other secondary battery. The energy
density of Li/MnO2 battery is up to 370Wh/kg and above.
2.High and Stable Operating Voltage
CR Series >2.7V (OCV 3.0V)
3.Wide Operating Current Range
To ensure the ten year service life, the cell operating current is merely at a few microamperes.
On the other hand, Forte also offers a wide range of options for varied needs; we can also
provide the cells with pulse current up to several amperes.
4.Wide Operating Temperature Range
For different cell types and under different operating current and applications, the operating
temperature endures from -40℃ to +70℃.
5.Long Shelf Life
Very low self discharge characteristics in storage at 20℃ and dry environment, and yearly
capacity loss of the CR series less than 1% .
6. Outstanding Service Life
Up to 10 years operating life for some application based on different current.
7. Ultimate Safety
All of the Forte primary lithium batteries are CE certificated, and meet UN transportation test
Hermetically glass to metal sealed.
Blast resistant construction to assure the safety.
Forte batteries series are free of heavy metal such as lead, cadmium or mercury, etc. All of
the wastes are naturally degradable and no long-term pollution to environment.
Lithium Manganese batteires 3V APPLICATION:
Utility meters (water, electricity, gas meters and AMR)
Alarm or security equipment (smoke alarm systems and detectors)
Teal time clocks
Remote monitoring systems
Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
Do not expose to, dispose of the battery in fire.
Do not put the battery in a charger or equipment with wrong terminals connected.
Avoid shorting the battery
Avoid excessive physical shock or vibration.
Do not disassemble or deform the battery.
Do not immerse in water.
Do not use the battery mixed with other different make, type, or model batteries.
Keep out of the reach of children.
Store the battery in a cool, dry and well-ventilated area.
Regulations vary for different countries.
Dispose of in accordance with local regulations.
Any other items which are not covered in this specification shall be agreed by both parties.
Lithium Manganese Dioxide Battery List:
|Mode||Voltage (V)||Capacity (mAh)||Discharge Current(mA)||End Voltage(V)||Diameter(mm)||Height (mm)||Weight (g)||Testing Temp.(℃)|
