Ürün ayrıntıları:
|
| Deşarj Kesme Gerilimi: | 2.0v | Kendi Kendine Deşarj Oranı: | 2 yıl |
|---|---|---|---|
| Ağırlık: | Yaklaşık: 2,5 gr | Hücre Modeli: | CP401725 |
| Gerilim: | 3V | Kapasite: | 320 mah |
| Vurgulamak: | Manganese Dioxide Ultra Slim Battery,Cylindrical Limno2 Ultra Slim Battery,CP401725 Manganese Dioxide Battery |
||

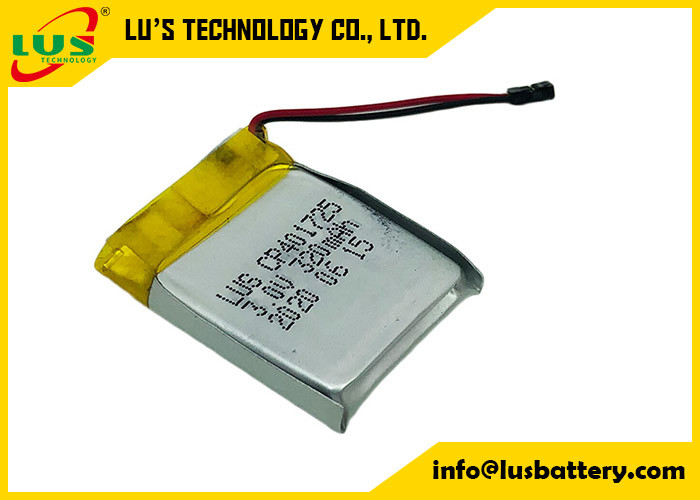

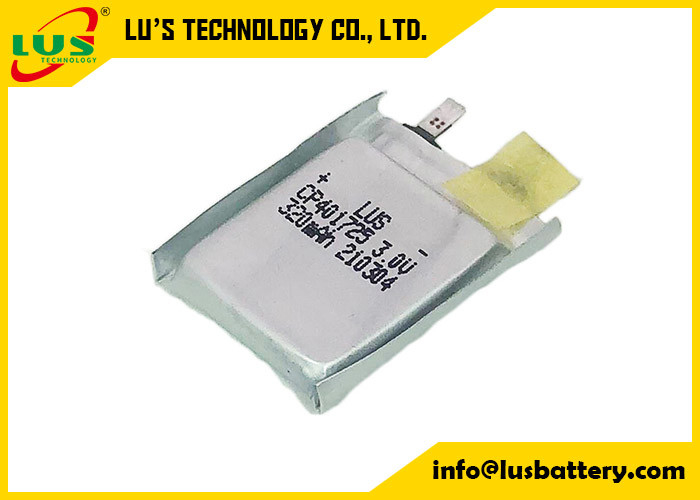

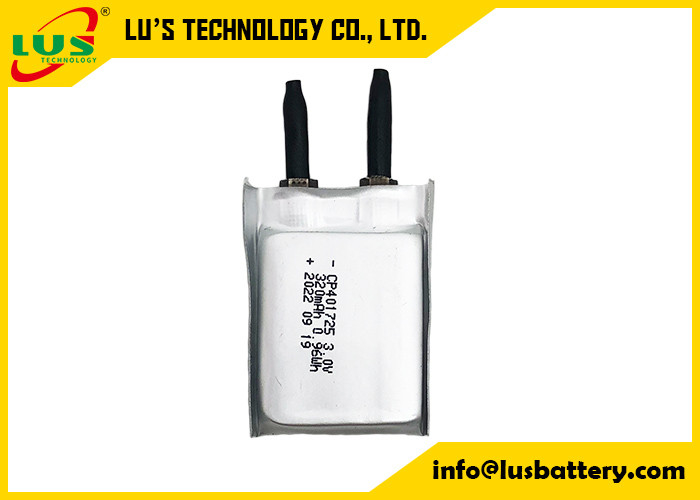

Lithium Manganese Dioxide Ultra Slim Battery 3.0v 320mah Replacement
Lithium Manganese Dioxide battery CP401725 3.0v 320mah replacement cylindrical limno2 battery AAA CR2430
Disposable 3.0V 320mAh Lithium Ion Pouch Cell CP401725 had pass CB testing Primary 3.0V Lithium Battery CP401725
Voltage 3v
Capacity 320mah
Size 4.0*18*28mm Max
Part number CP401725
Certificate CB
Data sheets:
| Name | ultra thin battery |
| Model | Cp401725 |
| Voltage | 3.0V |
| Capacity | 320 mah |
| Length | MAX 28 mm |
| Width | MAX 18mm |
| Thickness | MAX 4.0mm |
| Temperature | -40 to +70 |
| Shelf life | 10 years |
| Terminal | Can be customized |
| OEM and ODM | Welcome |
CP401725 pouch cell lithium battery drawing:
Ultra thin cell CP series Limno2 batteries Advantage:
Work Shop:
LUS Lithium maganese battery :
| Model | Maximum Appearance dimensions (mm) | Weight (g) |
Rated voltage (v) |
Rated Capacity (mAh) |
Standard Discharge Current (mA) |
Max.Current (mA) | |
| Continuous | Pulse | ||||||
| CP042922 | 0.45×29×22 | 0.4 | 3.0 | 15 | 0.5 | 10 | 20 |
| CP042345 | 0.45×23×45 | 0.8 | 3.0 | 30 | 0.5 | 20 | 35 |
| CP104848 | 1.2×49×49 | 3.8 | 3.0 | 350 | 1.0 | 50 | 100 |
| CP142828 | 1.5×29×29 | 1.5 | 3.0 | 100 | 1.0 | 15 | 30 |
| CP153030 | 1.6×31×31 | 1.8 | 3.0 | 120 | 1.0 | 50 | 100 |
| CP155050 | 1.6×51×51 | 6.0 | 3.0 | 650 | 5.0 | 500 | 1000 |
| CP2012120 | 2.0×12×125 | 5.5 | 3.0 | 450 | 1.0 | 100 | 200 |
| CP202850 | 2.2×28.5×50 | 3.6 | 3.0 | 380 | 1.0 | 100 | 200 |
| CP224035 | 2.4×41×36 | 4.8 | 3.0 | 580 | 1.0 | 150 | 300 |
| CP223045 | 2.4×31×46 | 4.2 | 3.0 | 480 | 1.0 | 150 | 300 |
| CP224147 | 2.3×45×49 | 7.0 | 3.0 | 800 | 1.0 | 500 | 1200 |
| CP265045 | 2.8×51×46 | 9.0 | 3.0 | 1200 | 1.0 | 300 | 500 |
| CP264558 | 2.8×46×59 | 9.5 | 3.0 | 1250 | 5.0 | 300 | 500 |
| CP305050 | 3.2×51×51 | 12.5 | 3.0 | 1600 | 5.0 | 600 | 1000 |
| CP401720 | 4.2×18×21 | 2.0 | 3.0 | 220 | 1.0 | 50 | 120 |
| CP401922 | 4.2×20×23 | 2.6 | 3.0 | 300 | 1.0 | 100 | 150 |
| CP405050 | 4.2×51×51 | 17.0 | 3.0 | 2400 | 5.0 | 1000 | 1500 |
| CP451728 | 4.5×18×29 | 3.2 | 3.0 | 380 | 1.0 | 120 | 200 |
| CP502525 | 5.2×26×26 | 4.5 | 3.0 | 600 | 5.0 | 200 | 300 |
| CP502440 | 5.2×25×42 | 8.5 | 3.0 | 1200 | 1.0 | 400 | 800 |
| CP503742 | 5.2×38×43 | 13.0 | 3.0 | 1900 | 5.0 | 800 | 1200 |
| CP504644 | 5.2×47×45 | 17.0 | 3.0 | 2500 | 5.0 | 1200 | 2000 |
| CP505050 | 5.2×51×51 | 22.0 | 3.0 | 3000 | 10.0 | 1500 | 2000 |
| CP602026 | 6.2×21×27 | 4.5 | 3.0 | 550 | 1.0 | 200 | 300 |
| CP701725 | 7.2×18×26 | 4.5 | 3.0 | 520 | 1.0 | 150 | 300 |
| CP783970 | 7.8×39×70 | 36.5 | 3.0 | 5500 | 10.0 | 3000 | 5000 |
| CP7839109 | 7.8×39×109 | 63.0 | 3.0 | 10000 | 10.0 | 3000 | 5000 |
| CP802060 | 8.0×20×60 | 15.5 | 3.0 | 2100 | 10.0 | 2000 | 3000 |
| CP952434 | 9.7×25×35 | 11.5 | 3.0 | 1700 | 5.0 | 500 | 800 |
| CP1003742 | 10.2×38×43 | 26.0 | 3.0 | 3900 | 5.0 | 1200 | 2000 |
