Adı	Lityum birincil pil ultra ince hücre
Malzeme	Limno2
Model	CP404042/CP404040
Voltaj	3.0V
Kapasite	1700mah
Boyut	En fazla 4x40.5x42mm
Sıcaklık	-40 ila +70
Ağırlık	12.5 g
Maksimum sürekli boşaltma akımı	800mA
Maksimum artı boşaltma akımı	1200mA
Terminaller	Özel
Örnekler	Kullanılabilir
Denizcilik	AIR/SEA/EXPRESS
OEM ve ODM	Hoş geldiniz.

Model Boyutu	Adli Voltaj	İsimsel Kapasite	Maksimum Sürekli Serbestleme Akımı	Maksimum Darbe Serbestleme Akımı	Boyut
Model Boyutu	Adli Voltaj	İsimsel Kapasite	Maksimum Sürekli Serbestleme Akımı	Maksimum Darbe Serbestleme Akımı	T(mm)	W(mm)	H(mm)
CP042345	3V	35mAh	2mA	4mA	0.45	23±0.5	45 ± 0.5
CP042529	3V	22mAh	2mA	4mA	0.45	25±0.5	29±0.5
CP042722	3V	15 mAh	1mA	2mA	0.45	27±0.5	22 ± 0.5
CP042922	3V	15mAh	1mA	2mA	0.41	29	23
CP044040	3V	50mAh	5mA	10mA	0.45	40	40±0.5
CP044560	3V	100mAh	10mA	20mA	0.45	45.5	60
CP052039	3V	25 mAh	2 mA	4 mA	0.5	20	39
CP052722	3V	22mAh	1mA	2mA	0.5	27	22
CP053050	3V	80mAh	15mA	30mA	0.5	30	50
CP054248	3V	100mAh	20mA	40mA	0.5	48.5±0.5	48.5±0.5
CP064348	3V	200mAh	20mA	50mA	0.6	48.5±0.5	48.5±0.5
CP073545	3V	160mAh	10mA	20mA	0.7	35	45
CP082922	3V	50 mAh	20mA	80mA	0.8	29	22
CP084248	3V	320mAh	20mA	50mA	0.8	48.5±0.5	48.5±0.5
CP102015	3V	30mAh	2mA	5mA	1	20 ± 0.5	15 ± 0.5
CP104248	3V	420mAh	100mA	200mA	1.05	49	49
CP105050	3V	420mAh	100mA	200mA	1.05	50	50
CP105075	3V	450mAh	200mA	300mA	1.05	45.2	75
CP105256	3V	500mAh	30mA	50mA	1.05	52	56
CP124444	3V	420 mAh	75 mA	150mA	1.2	44	44
CP142828	3V	160mAh	25mA	50mA	1.4	28±1.0	28±1.0
CP142828H	3V	140mAh	50mA	100mA	1.4	28±1.0	28±1.0
CP151220	3V	35mAh	5mA	10mA	1.5	12±0.5	20 ± 0.5
CP153030	3V	170mAh	40mA	80mA	1.5	30	30
CP153030H	3V	140mAh	50mA	100mA	1.5	30	30
CP154580	3V	1000mAh	150mA	300mA	1.5	45 ± 0.5	80
CP151015	3V	18mAh	0.5mA	1mA	1.5	10±0.5	15 ± 0.5
CP161220H	3V	20mAh	16mA	30mA	1.6	12±0.5	20 ± 0.5
CP161230H	3V	45mAh	16mA	30mA	1.6	12±0.5	30 ± 0.5
CP162235	3V	160mAh	30mA	50mA	1.6	22	35
CP164548	3V	700mAh	50mA	100mA	1.6	45.5	48.5
CP171234	3V	140mAh	20mA	50mA	3.6	35	13.5
CP181234	3V	125mAh	25mA	50mA	1.8	12±0.5	34
CP183123	3V	150mAh	45mA	75mA	1.8
CP201335	3V	120mAh	25mA	50mA	2	10	35
CP201535	3V	120mAh	30mA	60mA	1.9	14	35
CP202128	3V	130mAh	20mA	40mA	2	21 ± 0.5	28 ± 0.5
CP202540	3V	350mAh	75mA	150mA	2	25±0.5	40±0.5
CP202721	3V	140mAh	40mA	80mA	2	27±0.5	21 ± 0.5
CP203030	3V	230mAh	50mA	100mA	2	30	30
CP203034	3V	275 mAh	50 mA	100mA	2	30	34
CP203040	3V	210mAh/380MAH	100mA	200mA	2	30 ± 0.5	40±0.5
CP203242	3V	375mAh	75mA	150mA	2.1	32	42
CP204517	3V	210mAh	20mA	50mA	2	45 ± 0.5	17±0.5
CP204547	3V	750mAh	50mA	100mA	2	45 ± 0.5	47 ± 0.5
CP222920	3V	150mAh	45mA	75mA	2.2
CP224248	3V	850mAh	100mA	200mA	2.2	45 ± 0.5	48.5±0.5
CP225050	3V	1000mAh	200mA	400mA	2.2	50	50
CP225080	3V	1700mAh	200mA	400mA	2.2	50	80
CP242030	3V	230mAh	50mA	100mA	2.4	20 ± 0.5	30 ± 0.5
CP255050	3V	1200mAh	150mA	300mA	2.5	50	50
CP251525	3V	150mAh	40mA	80mA	2.5	15 ± 0.5	25±0.5
CP251626	3V	150mAh	60mA	150mA	2.5	16±0.5	26.5±0.5
CP252525	3V	250mAh	30mA	60mA	2.5	25.5	25.5
CP255047	3V	1250mAh	150mA	300mA	2.5	50	47.5±0.5
CP255080	3V	2050mAh	300mA	600mA	2.5	50	80
CP301415	3V	85mAh	30mA	60mA	3	14±0.5	15 ± 0.5
CP301919-2S	6V	150mAh	50 mA	100mA	6.1	19.5	19.5
CP302525	3V	350mAh	75 mA	150 mA	3	25	25
CP304580	3V	2500mAh	200mA	500mA	3	45	80
CP321626	3V	250mAh	50mA	100mA	6.1	19.5	19.5
CP334728	3V	700mAh	100mA	200mA	3.5	47.5	28.0±0.5
CP352440	3V	750mAh	100mA	300mA	3.5	24.5	41
CP355050	3V	2000mAh	500mA	1000mA	3.5	50	50
CP402020	3V	275mAh	50mA	100mA	4	20 ± 0.5	20 ± 0.5
CP402424H	3V	400mAh	100mA	300mA	4	24	24
CP403030	3V	550mAh	75mA	150mA	4	30	30
CP453450	3V	1700mAh	300mA	600mA	4.5	33±0.5	49 ± 0.5
CP501525	3V	350mAh	80mA	150mA	5	15 ± 0.5	25.5±0.5
CP502440	3V	1200mAh	150mA	300mA	5	24.5±0.5	41
CP502540	3V	1200mAh	150mA	300mA	5.2	42	25.5
CP503436	3V	1550mAh	200mA	500mA	5.2	34.5	36
CP503740	3V	1700mAh	300mA	600mA	5	37±0.5	40±0.5
CP503742	3V	1700mAh	300mA	600mA	5	37±0.5	42 ± 0.5
CP505050	3V	3000mAh	500mA	1500mA	5.2	50.5±0.5	50.5±0.5
CP505050-2S	6V	3000mAh	600mA	1800mA
CP505050-2P	3V	6000mAh	1000mA	2000mA	10.3	50.5	50.5
CP543537	3V	1500mAh	200mA	400mA	5.6	35.5	37
CP601919	3V	300mAh	100mA	200mA	6.1	19.5	19.5
CP603450	3V	2400mAh	500mA	1000mA	6.1	34±0.5	50 ± 0.5
CP603956	3V	3300mAh	800mA	1500mA	6.1	39±0.5	56
CP604446-2S	6V	3000mAh	2000mA	4000mA	13	46	44
CP603244	3V	2000mAh	1000mA	1500mA	6.2	32,5	44.5
CP702242	3V	1500mAh	200mA	1200mA	7	22	42
CP703028	3V	1000mAh	200mA	400mA	7	30	28
CP703448	3V	2000mAh	1000mA	1500mA	7	34	48.5
CP806468	3V	8000mAh	2000mA	4000mA	7.6	64	68
CP1002045	3V	1800mAh	900mA	1500mA	10.2	20.5	45.5
CP1002440	3V	2400mAh	400mA	800mA	10.2	25.5	40.5
CP1002550	3V	2700mAh	500mA	1000mA	10.2	25.5	50.5
CP4542100	3V	4750mAh	800mA	1500mA	4.5	42.5	100
CP7839109	3V	9000mAh	2000mA	3000mA	7.9	39±0.5	109
CP11568125	3V	28000mAh	4000mA	6000mA	12	68.5	126
CP9V	9V	1200mAh	150mA	300mA

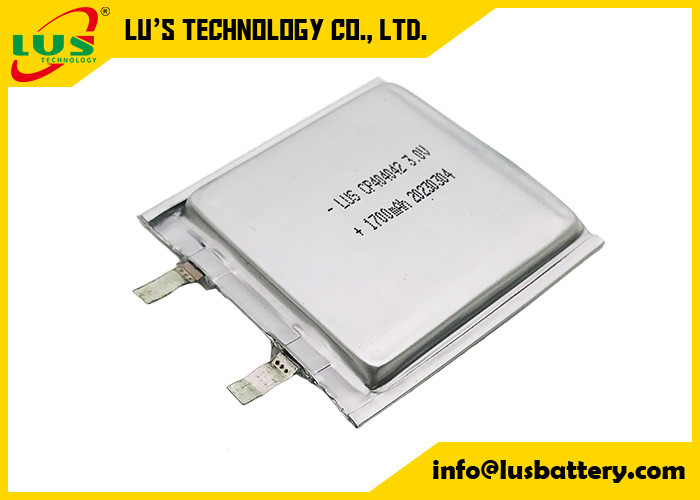

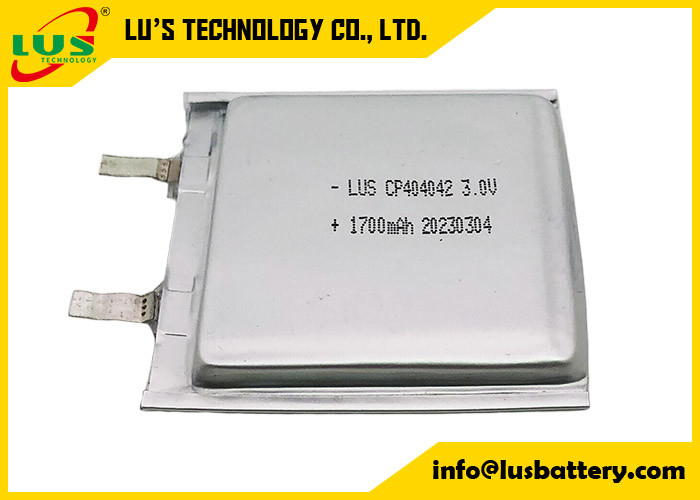

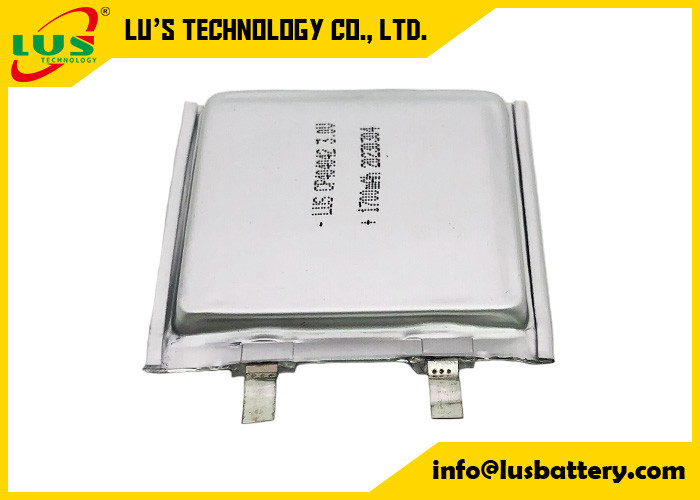

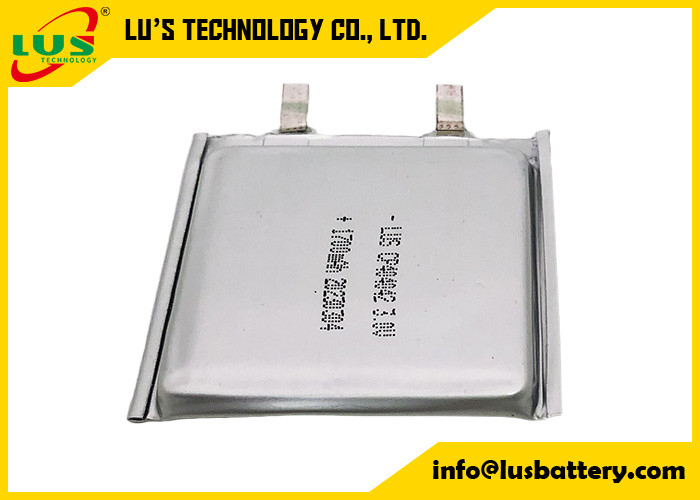

3V Lityum Pil Ultra Slim Piller 1700mAh CP404040 yumuşak paketli lityum metal pil hücresi

3V Ultra Slim pil

3V Lityum Pil Soft Pack

1700mAh Lityum Metal Pil Hücresi

3V Ultra Slim pil

3V Lityum Pil Soft Pack

1700mAh Lityum Metal Pil Hücresi
